Marina Cable Railing System - II - Metal Post

In stock
SKU: CA-12-51-S-0003
Regular price $17.95

Marina cable railing system - II - Metal post

The Marina cable railing assembly kit is perfect for creating a sleek and contemporary look, for both indoors and outdoors cable railing. This kit suits better for shorter runs of wire rope cable. It is also a budget wise option for home staging.





Specifications

This kit for one run of wire rope cable includes :

2 swage fork terminals

2 stainless steel threaded eyebolts

2 threaded sleeves



The fittings in this assembly kit need to be swaged with a cable crimper or a hand swager tool.

A cable railing should include 7 to 11 runs of cable, depending on the height of the posts.

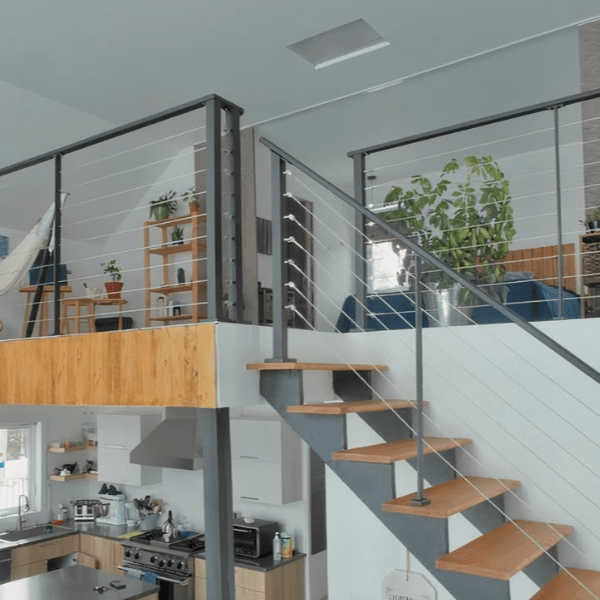

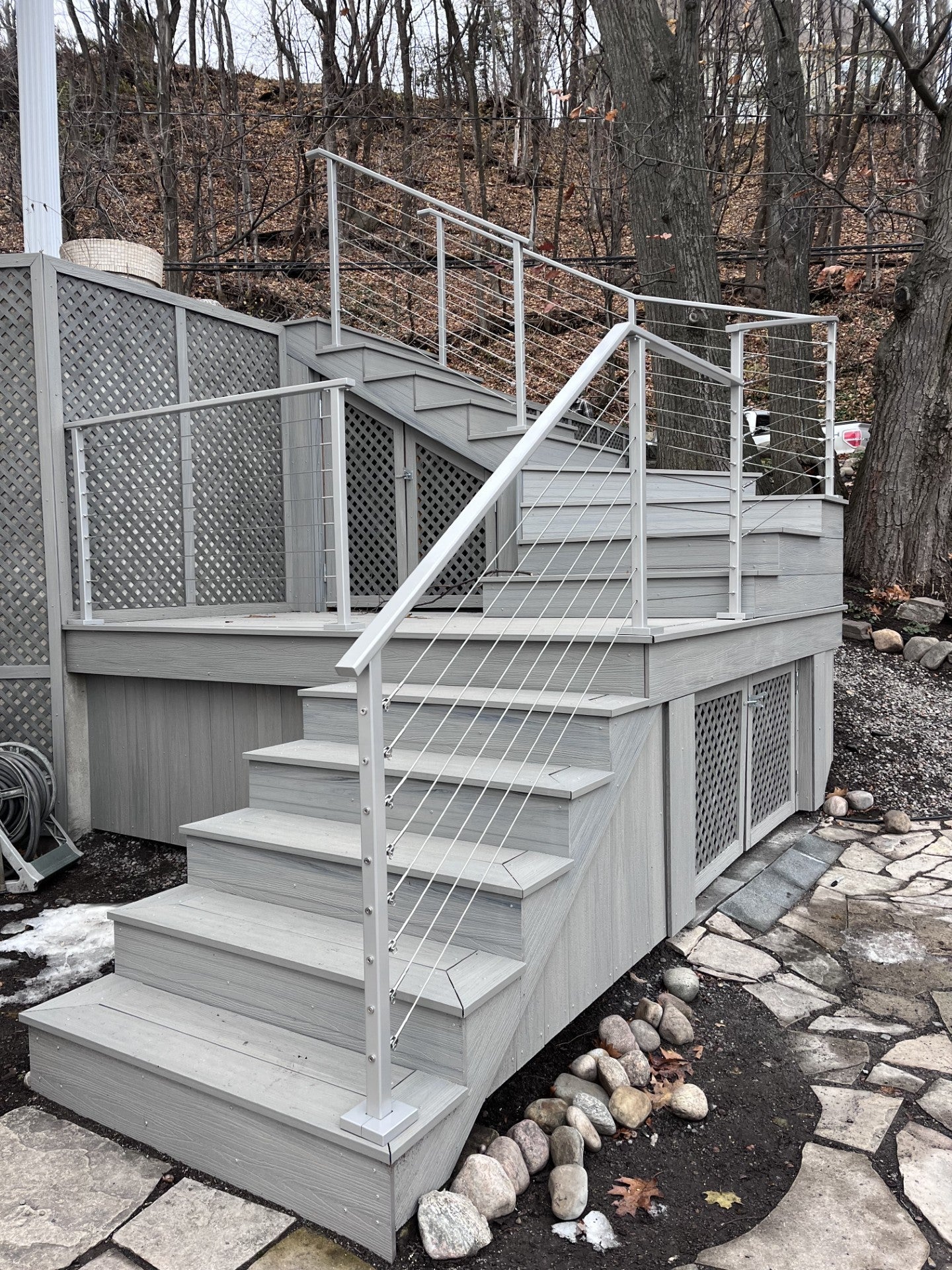

The Marina cable railing system is suitable for both indoor and outdoor cable railing projects.

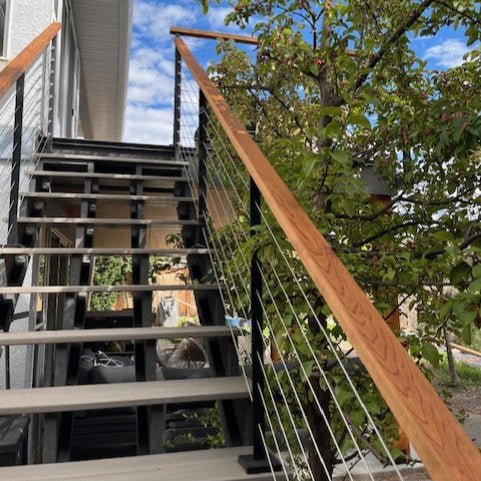

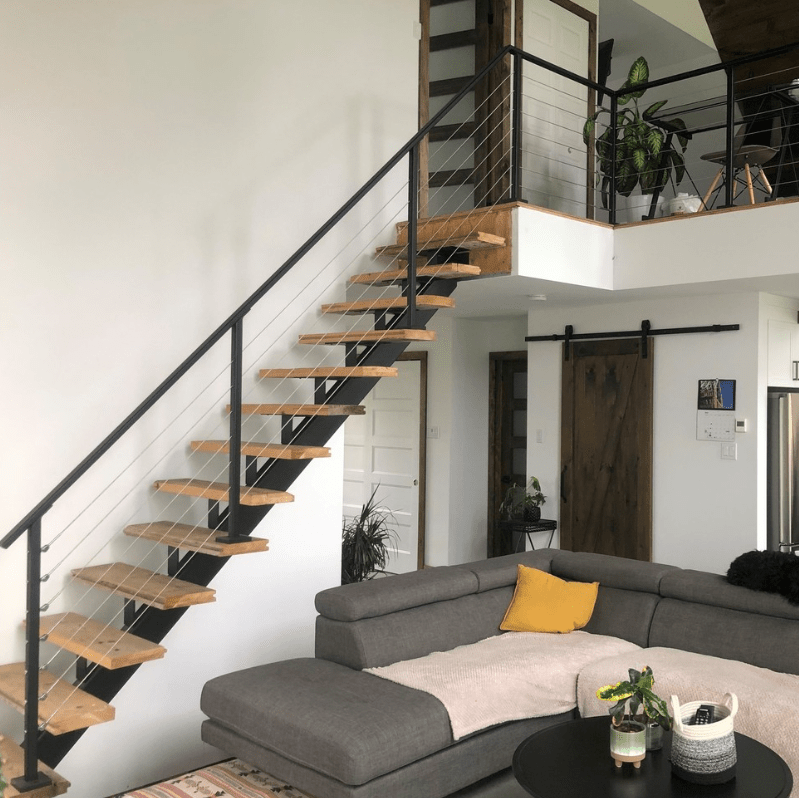

The Marina cable railing system is suitable for straight runs of wire rope cable or for "corner projects", especially for stair cable railing.


Installation instructions

Installation Guide (Marina Cable Railing System - II - Metal Post)

On the front side of your end posts, drill a 11/32’’ hole in diameter to install the stainless steel threaded eyebolts.

On the back side of your end posts, drill a 7/16 hole in diameter to install the threaded sleeves. Screw slightly the threaded sleeves onto the threaded eyebolts.

Attach swage fork terminal to the threaded eyebolts.

Insert the cable into the swage fork terminal and swage. For long distance, swage 2 or 3 times. Make sure to rotate 180 degrees for each swage to ensure robustness.

Cut the cable by measuring the distance to the other swage fork terminal. Insert the cable into the swage fork terminal and swage.

For tensioning, use a wrench to keep the swage fork terminals in place and screw fully the threaded sleeves.
