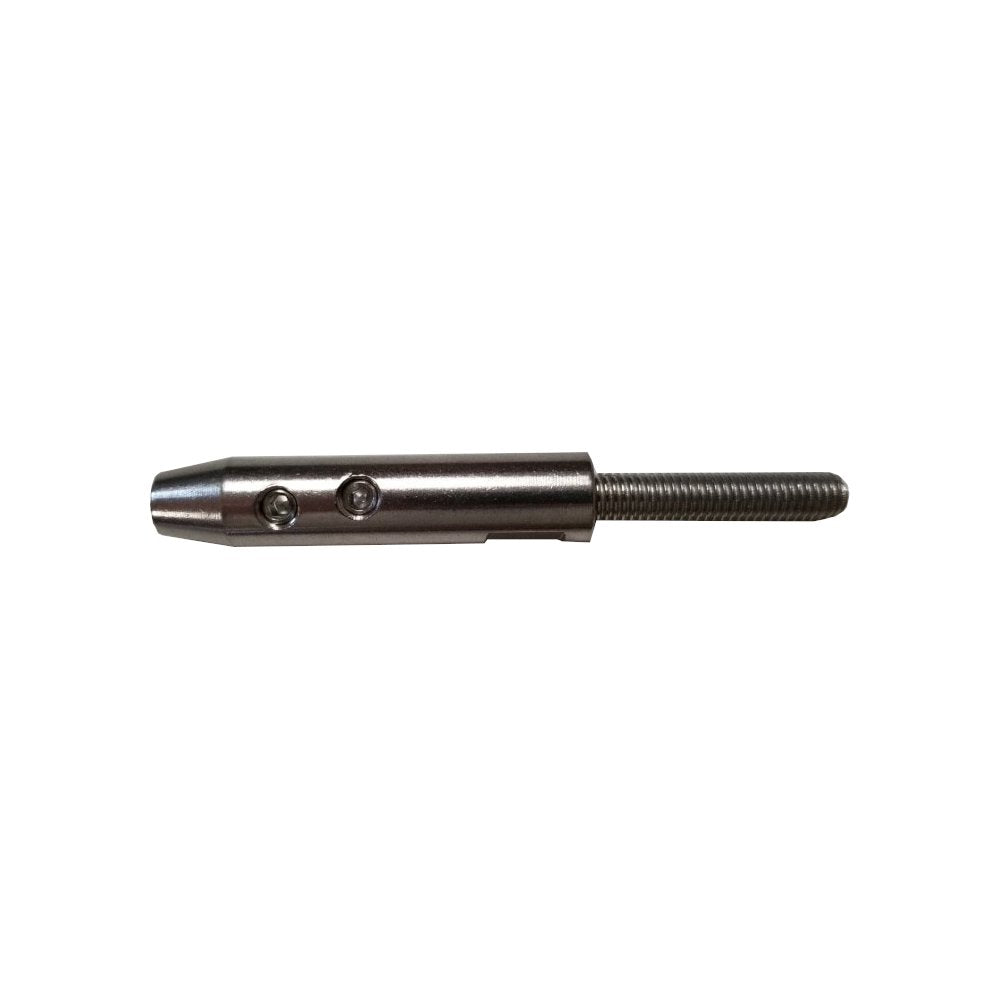

Swageless Stud

In stock
SKU: CA-13-52-S-0004
Regular price $6.28

Uses of the Swageless stud with grub screws

The Swageless stud with grub screws is a cable rail hardware with a sleek style.

The Swageless threaded stud with allen-headed screws can fit for small or medium cable railing projet. It is ideal for marine, industrial and architectural applications.

Swageless studs with grub screws is suitable for both indoor and outdoor cable railing projects.

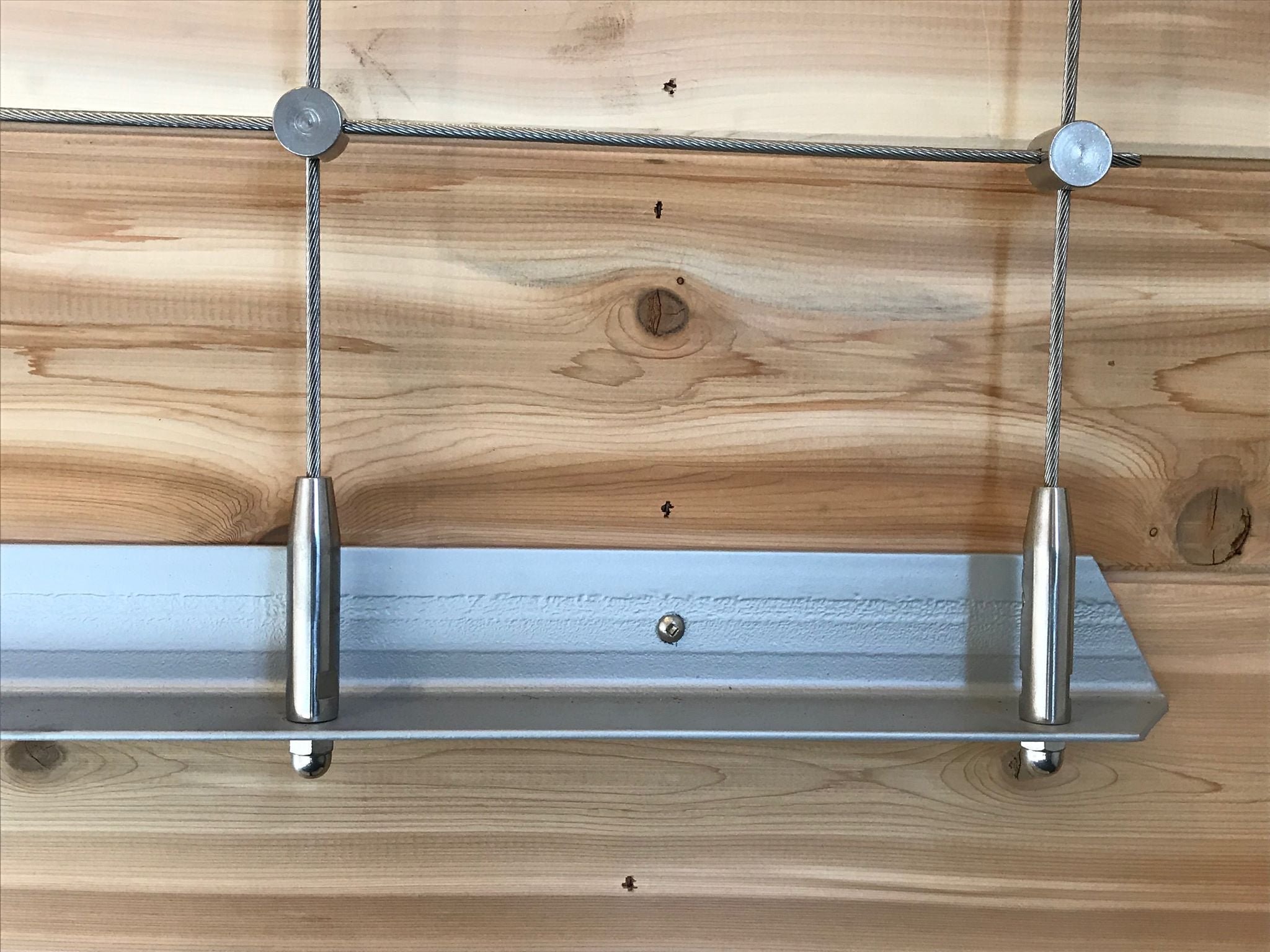

The Swageless stud is ideally suited for metal studs (max. 2 1/2''). In this setting, tensioning the cable is done by screwing the nut on the outside of the posts with an M8 nut or Threaded Sleeve.

The Swageless threaded stud with grub screws assembly provides all the necessary hardware for a cable rail projet.


Quick connect – No specialized tools needed (swageless)

Easy to install

Marine Grade 316 Stainless Steel - No rust, will look perfect for a lifetime

Fits 5/32" or 4mm or 1/8 – 3.2mm wire rope cable

Thread pitch : 1.25

M8 Right threads

The cable is compressed into the terminal using two grub screws.

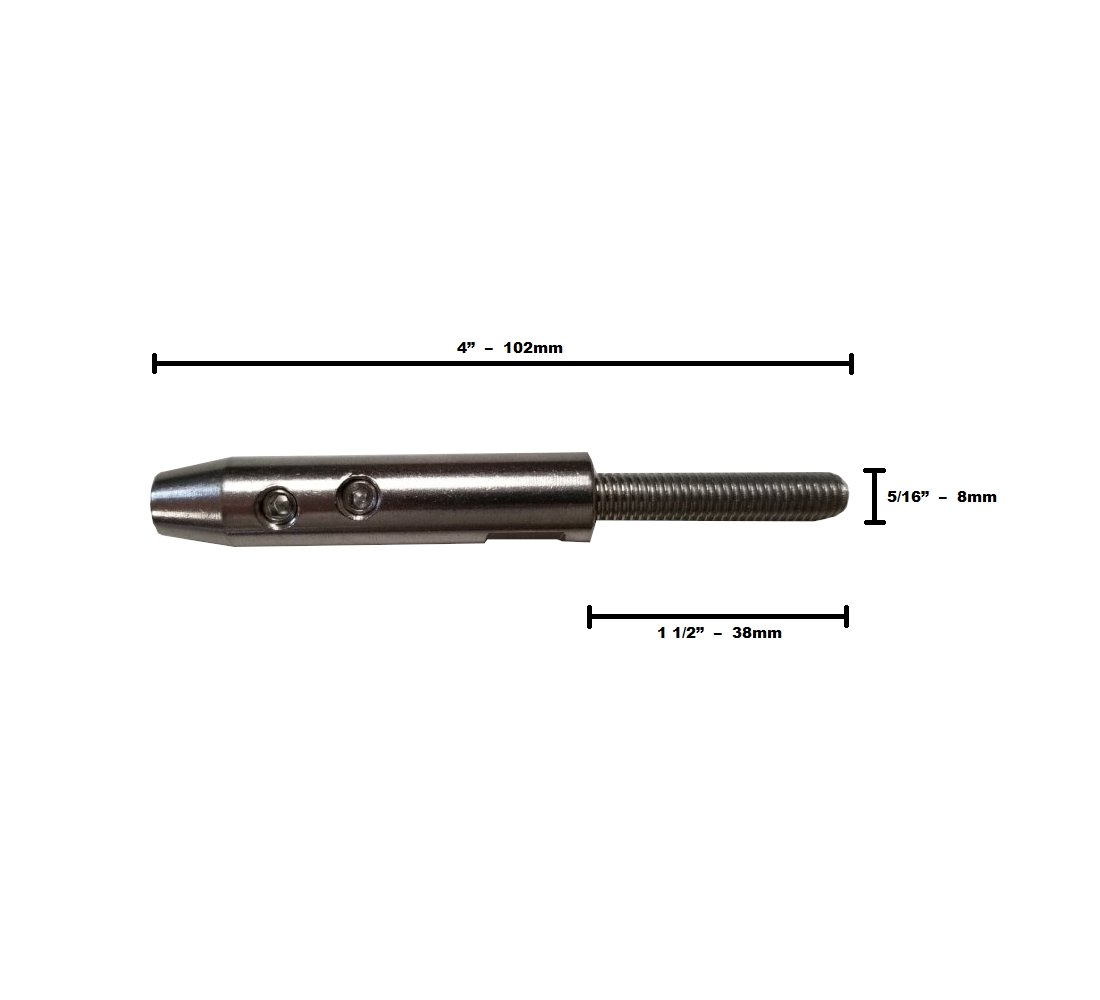

The stainless steel threaded rod lenght is 2’’ "to 51 mm (1" 1/2- 38.1 mm once screwed in the terminal).
